Air Fan – Explosion Proof Fan

Confined Space Hazard Prevention

Explosion-proof air fans are necessities for ventilation, exhaust and cooling of climate in hazardous environments (flammable, volatile material working area, mine, high temperature, hazardous atmosphere). It is used for extraction of hazardous, overheated and contaminated air and the supply and distribution of fresh air in amounts necessary to provide safe and comfortable conditions for the occupants of the space being ventilated. Applying to offices and workshops means the creation of an environment which stimulates the worker to higher efficiency and safety. We have many types of air fans in stock.

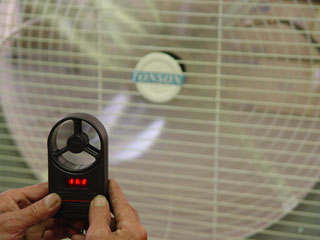

Axial-flow Air Fan (18″ Air Fan)					with reversible control
Model	TR-18P	TR-18PT	TR-18AL	TR-18ALT	TR-18ALTR
Blade Material	P.P.	P.P.	Aluminium	Aluminium	Aluminium
F.R.L	Χ		Χ
Width (mm)	248
Height (mm)	525
Height (add toe) mm	600
Flow Rate (m³/h)	4,400
Flow Velocity (m/s)	1.5
Net Weight (kg)	17	17.7	17.5	18.4	19.1
Gross Weight (kg)	18	18.7	18.5	19.4	20.1

Axial-flow Air Fan (24″ Air Fan)			with reversible control
Model	TR-24AL	TR-24ALT	TR-24ALTR
Blade Material	Aluminium
F.R.L	Χ
Width (mm)	310
Height (mm)	680
Height (add toe) mm	760
Flow Rate (m³/h)	5,900
Flow Velocity (m/s)	1.5
Net Weight (kg)	24	25.5	26.2
Gross Weight (kg)	24.5	27	27.7

Model: TR (Exhaust-Ventilation Axial Flow)

Sizes Available: 10″, 12″, 14″, 16″, 18″ & 24″

Size: TG12
Fan Height Including Feet (mm): 390
Fan Thickness (mm): 218
Fan Diameter: 12″

Size: TG18
Fan Height Including Feet (mm): 600
Fan Thickness (mm): 248
Fan Diameter: 24″

Size: TG24
Fan Height Including Feet (mm): 760
Fan Thickness (mm): 310
Fan Diameter: 24″

Contact us for Information on other sizes not listed above.

Air Fan Features Overview:

Complete Safety.
100% Explosion Proof.
Simple Stepless Speed Control.
Hermetically sealed to prevent dirt & dust.
No sparks or heat build up when blade is impeded.
Perfect ventilation solution for any hazardous environment.

Working Fluid : Compressed Air Operating Pressure : 6 kg /cm2 (85 PSI)
Ambient Temperature : -10 ~ +120 deg. C Max.Operating Pressure : 7 kg /cm2 (100 PSI)
Air Fans are designed to operate by compressed air and to be used with F.R.L.(filter, regulator and lubricator) to improve performance and provide longer life.
Users should be responsible for determining suitability of the product for intended use and assuming all risk and liability whatsoever in connection therewith.

Call our Australian Head Office Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au for any enquiries or questions on Air Fans.
