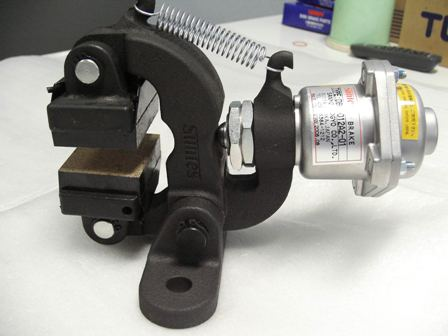

Caliper Disc Brakes – Pneumatic Applied/Sprig Release Brake

Caliper Disc Brakes – Pneumatic Applied/Sprig Release Brake

Pneumatically Applied Brakes are best suited for light to medium stopping duties and for tensioning applications where a high degree of control is required.

Pneumatic Disc Brakes are widely used for speed reducing, stopping/braking of the low or medium torque driving mechanism. The brakes can also be applied as tension brake on winding machineries, such as: paper-web tension control, news paper publishing tension control, steel unwind control, wire and cable reel unwind tension etc.

Features for Pneumatic Applied Brakes Include:

• Compact structure and small size, light. It is easy to control and operate.
• Normally-closed type: spring applied and pneumatically released; Normally-opened type, air pressure applied and spring opened, brake force can be adjusted by varying air pressure.
• The pneumatic actuator is made in Italy with high reliability and quality.
• The linings are of inserting installation style and non-asbestos. It can be easy replaced.

When it is not possible to apply a disc with a required diameter, it is enough to apply more than one clamp.

This type of brake is also very suitable in case that work involves a constant pull on the material, but a pressure regulator is required.The assembly of these brakes does not require any particular attention thanks to the new self-aligning system with orthogonal sliding which allows an automatic brake-disc alignment.

Caliper brakes can have two operating modalities:

• POSITIVE: when the control produces the braking effect.
• NEGATIVE (Spring Applied): the braking effect is obtained when the control is absent. These clamp brakes are mainly used as safety and parking brakes.

Many caliper brakes available; Including:

• Hand Operated Caliper brakes
• Pneumatically Released Caliper brakes
• Duo Caliper brakes possible
• Hydrualic release / Hydraulic applied caliper brakes

Standard Size brake discs available and Customised can be manufactured.

SAMT is specialised in the design import and supply of Caliper brakes; Maching services available to customise caliper brake discs to suit the application. Many bore sizes available. Other brands including Twiflex brakes can be supplied.
