TONSON Australia has many years in mixing technology solutions for all industries meeting Australian standards; many types are available including Mobile 200L Mixers, we can supply mixers to suit explosion proof and standard environments. Electric types also available.
|

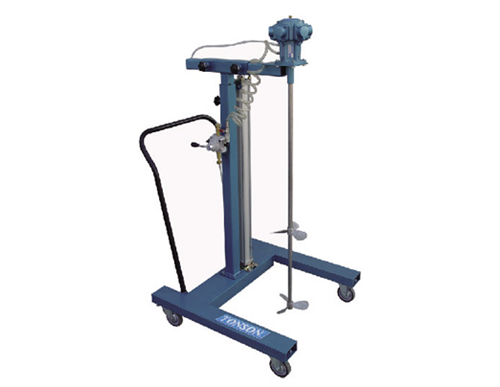

Air lift mixer
|
 |

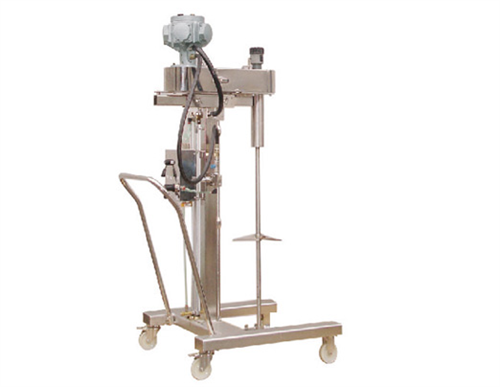

 Stainless Steel
|
with fixable seat for lock the tank body |
 |
 |
 |
|---|---|---|---|---|---|---|
|
Model
|
TU-M5
|
TU-M5-S
|
TU-M5-C |
TU-M7
|
TU-V6
|
TU-V8
|
|
Power
|
1/2HP
|
1/2HP
|
1/2HP |
1HP
|
4HP
|
5HP
|
|
Shaft
|
Ø20mm x 1170mm
|
Ø20mm x 1170mm
|
Ø20mm x 1170mm |
Ø25mm x 1170mm
|
Ø20mm x 1170mm
|
Ø25mm x 1170mm
|
|
Propeller
|
8″ x 2
|
8″ x 2
|
8″ x 2 |
8″ x 1
|
8″ x 2
|
10″ x 2
|
|
10″ x 1
|
||||||
|
Net Weight (kg)
|
||||||
|
Gross Weight (kg)
|
85
|
88 |
96
|
88.5
|
9 |
Many Propellers and Impellers available
Features of the above Air Mixers Include:
Many Propellers and Impellers available
| Auto air lift mixer |  |
|
||
| Model | TU-AUTO-M5 | TU-AUTO-M7 | TU-AUTO-V6 | TU-AUTO-V8 |
| Power | 1/2HP | 1HP | 4HP | 5HP |
| Shaft | Ø20 x 1170mm | Ø25 x 1170mm | Ø20 x 1170mm | Ø25 x 1170mm |
| Propeller | 8″ x 2 | 8″ x 1 | 8″ x 2 | 10″ x 2 |
| 10″ x 1 | ||||
| Net Weight (kg) | ||||
| Gross Weight (kg) |
|
Auto air lift mixer Stepless speed control
|
 |
 |
|
|
|---|---|---|---|---|
|
Model
|
TU-AUTO-R-M5
|
TU-AUTO-R-M7
|
TU-AUTO-R-V6
|
TU-AUTO-R-V8
|
|
Power
|
1/2HP
|
1HP
|
4HP
|
5HP
|
|
Shaft
|
Ø20mm x 1170mm
|
Ø25mm x 1170mm
|
Ø20mm x 1170mm
|
Ø25mm x 1170mm
|
|
Propeller
|
8″ x 2
|
8″ x 1
|
8″ x 2
|
10″ x 2
|
|
10″ x 1
|
||||
|
Net Weight (kg)
|
|
|
|
|
|
Gross Weight (kg)
|
|
|
|
|
 |
M7-TU-AUTO

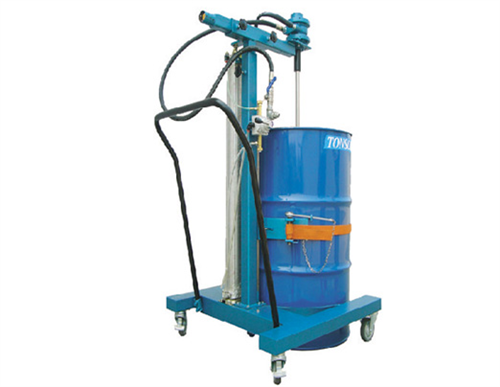

Mobile Pneumatic Lift Stand Mixer Autolifting and lowering while mixing: Short mixing time, cost-effective.
|
|
Features of the above Air Mixers Include:
Call our Australian Head Office Ph: 02 9607 4100 or email us:
sales@tonson-motor.com.au for any enquiries or questions on customised Mixers.
Since 1966 - Realising Clever Conceptions ISO 9001 CE
