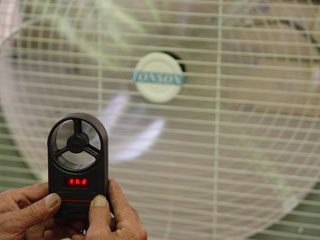

Fan AirFlow Test
Stand Industrial Air Fan
Fan AirFlow Test

Resources

Air Fans Catalogue

Stand Industrial Air Fan

Specifications

Air Fan – Explosion Proof Fan

             Confined Space Hazard Prevention


Explosion-proof air fans are necessities for ventilation, exhaust and cooling of climate in hazardous environments (flammable, volatile material working area, mine, high temperature, hazardous atmosphere). It is used for extraction of hazardous, overheated and contaminated air and the supply and distribution of fresh air in amounts necessary to provide safe and comfortable conditions for the occupants of the space being ventilated. Applying to offices and workshops means the creation of an environment which stimulates the worker to higher efficiency and safety. We have many types of air fans in stock.

Stand Air Fan
(18″ Air Fan)
Model
TG-18P
TG-18AL
TG-18PT
TG-18ALT
Blade Material
P.P.
Aluminium
P.P.
Aluminium
F.R.L
Thickness (mm)
200
Length (mm)
1,110 x 590
Flow Rate (m3/ h)
5,700
Flow Velocity (m/s)
1.5
Net Weight (kg)
8.6　
9.1　
　9.3
9.8
Gross Weight (kg)
9.6　
10.1　
　10.3
10.8

Stand Oscillation
Air Fan
(18″ Air Fan)
Model
TGS-18P
TGS-18AL
TGS-18PT
TGS-18ALT
Blade Material
P.P.
Aluminium
P.P.
Aluminium
F.R.L
Thickness (mm)
200
Length (mm)
1,110 x 590
Flow Rate (m3/ h)
5,700
Flow Velocity (m/s)
1.5
Net Weight (kg)
9　
9.5　
9.7　
10.2　
Gross Weight (kg)
10　
10.5　
10.7　
11.2　



Stand Air Fan
(24″ Air Fan)
Stand Air Fans
Stand Oscillation Air Fans
Model
TG-24AL
TG-24ALT
TGS-24AL
TGS-24ALT
Blade Material
Aluminium
Aluminium
Aluminium
Aluminium
F.R.L
Thickness (mm)
240
Length (mm)
1,260 x 850
Flow Rate (m3/ h)
6,500
Flow Velocity (m/s)
1.5
Net Weight (kg)
14
15.5
14.5
16
Gross Weight (kg)
15.5
17
16
17

Model: TG

Sizes Available: 18″ & 24″

  • Size: TG18
    Height (mm): 865
    Leg Width (mm): 590
    Fan Thickness (mm): 200
    Fan Diameter: 18″
  • Size: TG24
    Height (mm): 1220
    Leg Width (mm): 850
    Fan Thickness (mm): 240
    Fan Diameter: 24″

Air Fan Features overview:

  • Complete Safety.
  • 100% Explosion proof.
  • Simple Stepless Speed Control.
  • Hermetically sealed to prevent dirt & dust.
  • No sparks or heat build up when blade is empeded.
  • Perfect ventilation solution for any hazardous environment.



Working Fluid : Compressed Air Operating Pressure : 6 kg /cm2 (85 PSI)
Ambient Temperature : -10 ~ +120C Max.Operating Pressure : 7 kg /cm2 (100 PSI)
Air Fans are designed to operate by compressed air and to be used with F.R.L.(filter, regulator and lubricator) to improve performance and provide longer life.
Users should be responsible for determining suitability of the product for intended use and assuming all risk and liability whatsoever in connection therewith.
