Our top of the line Stainless Steel IEC AC Motors are suitable for almost any application. This is due to it’s reliability and durability, since it is made from a high grade of stainless steel, enabling it to exceed customer requirements.
Stallion SS B14 Flange Mount Electric Motor
If you’re after a geared drive, the new GHA HACCP approved worm and bevel helical gearboxes are now available! For more information click here
Technical Data
• Voltage: 240/415V

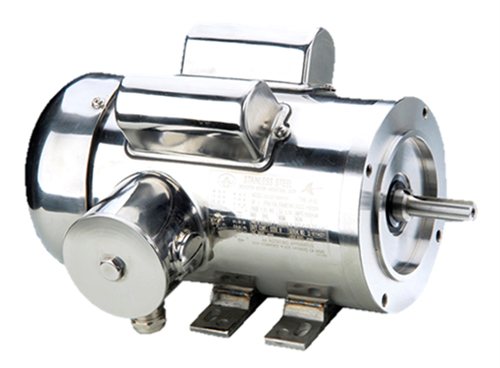

• Phase: 1Ph / 3Ph Stainless Steel AC Motor
• Frequency: 50Hz
• Poles: 4
• International protections: IP 66/69 Washdown
• Insulation Class: F
• Duty: S1
Features:
• Special advanced stator insulation system
• Efficiency:
– NEMA Stainless Steel motor: Exceeds NEMA EPACT Efficiency standards
– IEC Standard Motor: As per 60034-30-2008 Euro standards
• Variable speed capability: Rated 20 – 80Hz
• Thermistors as standard: PTC style thermistors for early detection of excessive temperature rise.
• Noise Levels: DBA noise is the lowest in industry
• Washdown duty applications
• Oversized Bearings on both ends c/w Locked Drive-end Bearing Construction
• Oversized Conduit Box c/w Lead Seal
• Drill & Tapped Drains
• T-Drain included
• Double Lip Contact Seals
Applications
Frame Construction
End-shield Construction
• Stainless Steel End-shield: Precision Machined from premium 304 stainless steel and end-shield is fitted by long bolts for ease of disassembly.
• Extra Deep Protection: Special O-rings (submersible) on the end-shields for double the protection against water entry.
Terminal Box
• Frame to conduit box: Epoxy encapsulated head entrance conduit box to keep chemicals and moisture from entering motor.
• Conduit box cover: Conduit box cover with seal simply twist off for quick and easy installation and maintenance.
• Entrance connector: Submersible cable gland is provided as standard.

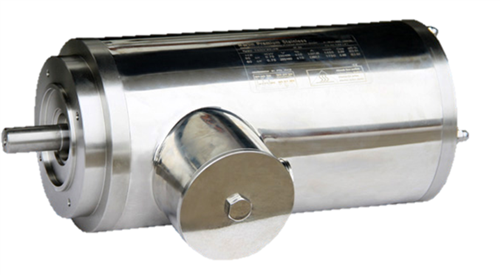

Stallion Electric Motor B14 Flange

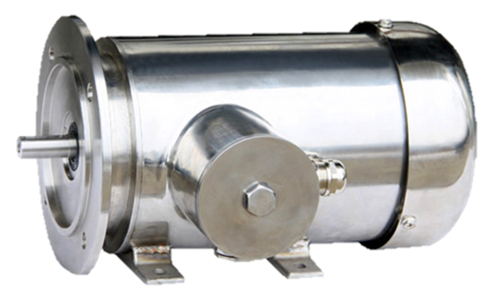

Stallion Electric Motor B5 Flange
