Pneumatically Applied Brakes are best suited for light to medium stopping duties and for tensioning applications where a high degree of control is required. Pneumatic Disc Brakes are widely used for speed reducing, stopping/braking of the low or medium torque driving mechanism. The brakes can also be applied as tension brake on winding machineries, such […]
Scope of Production 0.4~7.5kW supply record Description Hyosung’s permanent magnetic (PM) motor is a combination of the induction and permanent magnet motors and it operates like the induction motor during start-up, but, during rated operation, it operates like the permanent magnet motor for a high efficiency and power factor. Features – Minimized energy loss by […]
Hydraulic safety (emergency) brakes are high-powered braking devices which are used on low speed shafts for the lifting control and pitching mechanism of various large and mid-sized cranes & port handling machinery. They are also applied for the same purpose for mine winder, lifter, elevators , belt conveyers, cable cars, foundry and cable cranes. Main […]
YP Series Electro-hydraulic Disc Brakes are a high performance multi-functioning disc brake. Due to their automatic shoe clearance balance and wear compensation device they are maintenance friendly. Various limit switches can provide an interlocking protection signal to main machinery PLC. They function well for decelerating and stop/braking in large-scale modern machines such as loading and […]
Features Highly-efficient cooling system A cooling hole is stamped at the stator, the sheet, and the axle cooling duct of the core stack. A cooling hole can perform the maximum heat dissipation due to cooling around the source of loss, offering efficient motor usage. The cooling hole, consisting of the axle cooling duct of the […]
Scope of Production Output 0.4kW ~ 1,500kW Scope of Production Constant Torque Constant Horsepower Variable Torque Description Hyosung’s pole change motors offers both a separate winding and changes the wiring to a specially designed wiring for the purpose of variable speed in order to control the requested speed. Features – Reliable insulation system – Superior […]
The RWK series brake is normally an opened brake which is operated by foot. It is mainly used for deceleration braking of various mid-sized and small cranes. Main Design Features: Interlocking shoe clearance balancing device (patented technology) and shoe auto-aligning device constantly equalise the clearance of brake shoes on both sides to make adjustment unnecessary, […]
Scope of Production Output Up to 5,000kW Voltage 3,300 ~ 13,800V Frequency 50Hz , 60Hz Description Hyosung’s pole change motor offers a separate winding or changes the wiring to a specially designed wiring to achieve variable speeds in order to control the requested speed. Features – Reliable insulation system – Superior operational features – Highly-efficient […]
Electromagnetic drum brakes can be extensively used for deceleration and stopping of electromagnetic lifter and various lift, belt transport, port handling, metallurgical and building machinery using DC drive or DC net. And not suitable for machines using AC drive. Features: Interlocking shoe clearance balancing device (patented technology) and shoe auto-aligning device constantly equalize the clearance […]
Scope of Production Output 0.4kW ~ 10,000kW Product Lineup Scalor Inverter duty motors (V/F control) Vector Inverter duty motors (HV2, HV2, HV3, HV5) Description Hyosung’s inverter duty motor changes the input of the motor as desired and controls the speed and torque over a wide range and even making it possible to precisely control speed […]
Scope of Production Output 0.4kW ~ 20,000kW Description Hyosung’s marine motors are designed for wet, moist, and corrosive environments. The marine motor design adopts a corrosion-proof frame which allows the motor to be operated normally even when the motor gets wet. In addition, a space heater is used to remove the moisture in the motor […]
Pneumatic drum brakes can be extensively used for various mechanisms, deceleration and stop/braking of various hoisting/Winching, belt transport, port handling, metallurgical, machinery, mining and any sites which are equipped with pneumatic source. Features for Pneumatic Drum Brakes: Interlocking shoe clearance balancing device (patented technology) and shoe auto-aligning device constantly equalise the clearance of brake shoes on […]

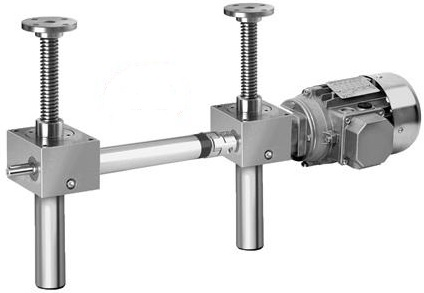

Specifications Ratios: 1:5 – 1:40 Lifting Load (kg): Up to 9600 Power Range (kW): 0.2 – 2 JW series screw jack overview: Flexible installation, due to it’s ability to move upwards, downwards, auxiliary propelled and height could be easily adjusted • Drive ability: Screw Jack Reducer can be driven by electrical motors or other power […]
Electro-hydraulic drum brakes can be used for the deceleration and stop/braking of various belt transport, port handling, hoisting, metallurgical, mining and building machinery. Features: Interlocking shoe clearance balancing device (patented technology) and shoe auto-aligning device constantly equalise the clearance of brake shoes on both sides and make adjustment unnecessary, completely avoiding brake lining sticking to […]
Scope of Production Voltage range of motor 15~75,000kW(4P) Reduction gear ratio 3.55:1~630:1 Output torque 530~325,000kg·m Custom-built production available. Description Hyosung’s RPS-series is a specialised planetary reducer series which offers a high load and a high reduction of the gear ratio. It is the best reducer for an application with complex specifications and it is evaluated […]

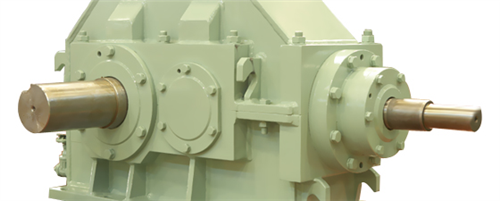

Scope of Production Gear ratio : maximum of 500:1 Torque: 40,000kg·m (output) 11 standardised sizes offered Custom-built production available Description Hyosung’s right angle gear uses a bevel gear and the input and output shafts are installed at a right angle to each to meet the various environmental requirements of our customers. In addition, it features […]

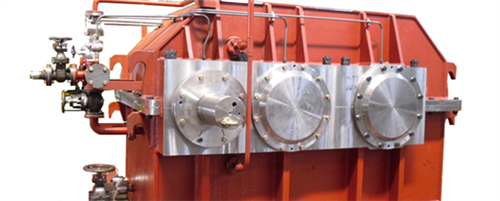

Scope of Production Gear ratio: maximum of 500:1 Torque: 40,000kg·m (output) 11 standardised sizes offered Custom-built production available Description Hyosung’s parallel shaft gear box uses a helical gear so that the direction of the input shaft is parallel with the direction of the output shaft, allowing various arrangements according to the customer’s demands. In addition, […]

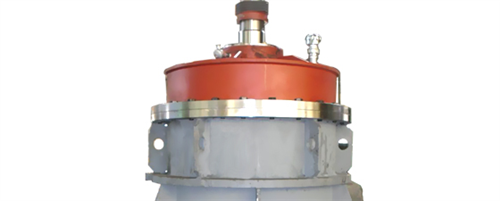

The Premium Planetary Gear Units are reliable drive components for the use of different industrial core sector. Planetary Gearboxes have much higher mechanical rating capacity compared to parallel shaft Gears. The power being transmitted gets equally distributed among three or five planets in each stage therefore resulting in reduced induced stress which optimizes the size […]
Brake-clutch assemblies are typically compact and modular, so that they can be mounted quickly and easily on different transmission systems. Our models are made to VDE 0580 standards and only with: ELECTROMAGNETIC CONTROL These are completely closed single-disc brake and clutch units, and therefore ideal for damp and dusty environments. They have IP 44 and […]
Specifications Ratios: 1:5 – 1:40 Lifting Load (kg): Up to 9600 Power Range (kW): 0.2 – 2 JW series screw jack overview: Flexible installation, due to it’s ability to move upwards, downwards, auxiliary propelled and height could be easily adjusted • Drive ability: Screw Jack Reducer can be driven by electrical motors or other power […]
Specifications Ratios (i): 4 – 2800 Torque Range (KNm): 0.2 – 108.3 Power Range (Kw): 0.25 – 55 Features • Modular design realises variable combination. • Housing is made of cast iron, which improve its rigidity and anti-vibration. • Sun and planet gears are processed by cementite and hardening, gears are processed by grinding, which […]
A toothed clutch is a device that connects two kinematic systems rotating at the same or a slightly different speed, depending on the type of toothing. It can have the following types of toothing: Triangular without backlash, for connecting at a standstill or at null/almost null relative velocity, with two-way drive. Trapezoidal with backlash, for […]
A clutch (or a friction clutch) is a device which transmits motion between the two kinematic systems rotating at different angular speeds. We produce/Supply the following types of clutch: Multiple disc (multidisc), mainly for oil bath and dry applications at low speed. Single-disc, only for dry applications. They can be controlled in the following ways: […]
Thru-Shaft Mounted Clutch-Brakes combine the features of a Friction Clutch with a Friction Brake into a single unit. 5 Imperial Models offer Pilot Mount, Sheave Mount and Pilot Mount with Coupling Half options. Pilot Mont units are available in 2 Standard Bore sizes with customisation possible with Bushings and Couplings. Thru-Shaft Mount units come in […]
