V4 – 1.3kW

Model	V4-F	V4-L	V4-LM	V4-L	V4-B	V4-N	V4-I
Mounting	Face	Foot	Foot	Face	Butterfly	NEMA 56C	IEC #72 D71
Performance at Maximum Speed
Power (HP / KW)	1.71 / 1.3
Torque (Nm / lbin)	4.10 / 36.29
Speed (RPM)	3000
Air Consumption (l/min / CFM)	2200 / 78
Mass (kg / lb)	3.9 / 8.58	4.3 / 9.46	5.2 / 11.44	4.6 / 10.12	4.1 / 9.02	5.1 /11.22	5.3 / 11.66
Performance at Maximum Torque
Torque (Nm / lbin)	6.3 / 56
Speed (RPM)	300

Performance when combined with Our Gearbox:

Model Code			Gear Ratio	Performance at Maximum Speed							Maximum Torque
Series	Type			Power		Torque		Speed	Air Consumption		Speed	Torque
Series	Type			HP	kW	N·m	lb·in	RPM	l/min	CFM	RPM	N·m	lb·in
V4 (4AM)	*	Standard	1:1	1.71	1.3	4.10	36	3,000	1,620	57	300	6.3	56
	*B	with brake	1:1	1.71	1.3	4.10	36	3,000	1,620	57	300	6.3	56
	**G3	with reducer with reducer / brake	3:1	1.3	0.94	9.20	81	1,000	1,700	60	100	14	124
	**G5		5:1	1.3	0.94	15.4	136	600			60	24	212
	**G10		10:1	1.3	0.94	31	274	300			30	48	425
	**G15		15:1	1.27	0.90	45.2	400	200			20	72.3	640
	**G20		20:1	1.17	0.87	55.0	487	150	2,000	71	15	84	740
	**G30		30:1	1.1	0.79	75.5	668	100			10	116	1,027
	**G40		40:1	0.95	0.71	90	800	75			7	142	1,255
	**G50		50:1	0.88	0.66	105	929	60			6	161	1,425
	**G60		60:1	0.83	0.61	117.5	1,040	50			5	185	1,640
	**G70		70:1	0.83	0.61	137.8	1,220	42.9			4	207	1,832
	**G80		80:1	0.83	0.61	157.7	1,396	37.5			3.5	237	2,097
	**G100		100:1	0.83	0.61	205	1,814	30			3	308	2,726
	**G120		120:1	0.83	0.61	236.5	2,093	25			2.5	355	3,142
	**G140		140:1	0.83	0.61	285	2,522	21			2	428	3,788

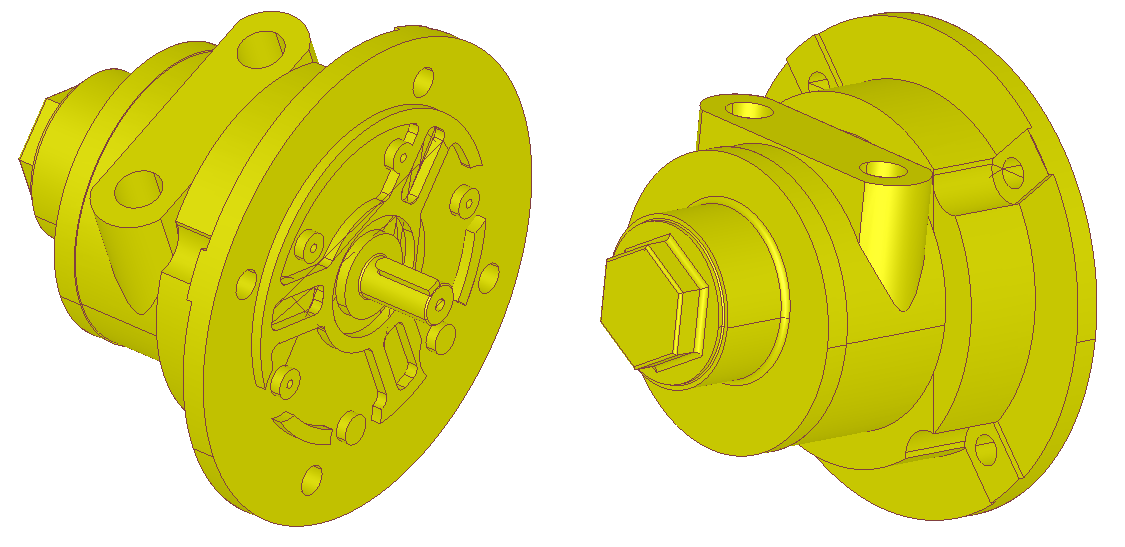

2D and 3D Drawings Available For Our Air Motors!!

Air Motors can easily operate under conditions which are not suitable for electric, hydraulic, stepper and servo motors

Vane Air motor applications are unlimited:

Vane Air Motor Features Include:

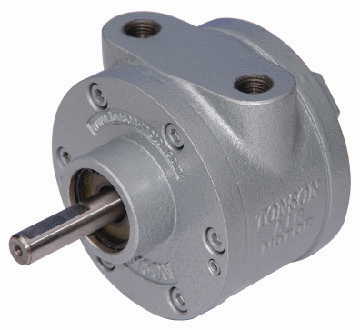

V4-F

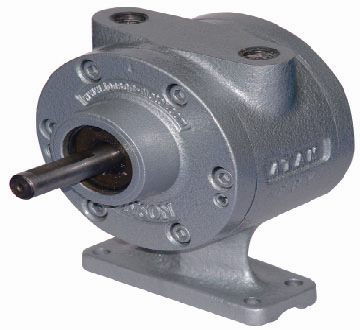

V4-L

Extended shaft support.
Ideal for mixers
V4-LM

Extended shaft support.
Ideal for mixers
V4-M

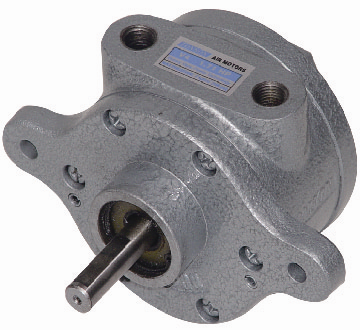

V4-B

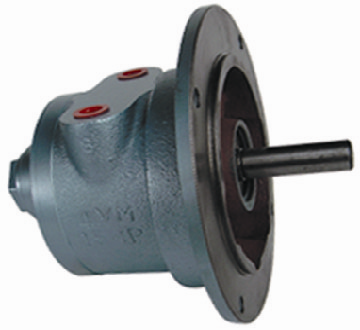

V4-N

V4-I
